1. Structural Characteristics and Synthesis of Spherical Silica
1.1 Morphological Meaning and Crystallinity

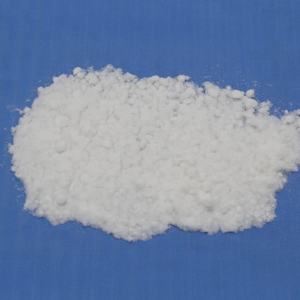

(Spherical Silica)
Spherical silica refers to silicon dioxide (SiO ₂) fragments engineered with a very uniform, near-perfect round shape, distinguishing them from conventional uneven or angular silica powders originated from natural sources.
These bits can be amorphous or crystalline, though the amorphous kind dominates commercial applications because of its exceptional chemical stability, lower sintering temperature level, and lack of phase shifts that can generate microcracking.
The spherical morphology is not normally widespread; it should be synthetically accomplished through regulated processes that control nucleation, growth, and surface energy minimization.
Unlike smashed quartz or merged silica, which show rugged sides and broad size distributions, round silica attributes smooth surfaces, high packing density, and isotropic behavior under mechanical anxiety, making it excellent for precision applications.
The fragment diameter normally ranges from tens of nanometers to several micrometers, with tight control over size distribution enabling foreseeable performance in composite systems.
1.2 Regulated Synthesis Pathways
The key method for generating spherical silica is the Stöber procedure, a sol-gel method created in the 1960s that includes the hydrolysis and condensation of silicon alkoxides– most frequently tetraethyl orthosilicate (TEOS)– in an alcoholic remedy with ammonia as a catalyst.
By adjusting parameters such as reactant focus, water-to-alkoxide ratio, pH, temperature level, and reaction time, researchers can precisely tune particle dimension, monodispersity, and surface area chemistry.
This method returns very uniform, non-agglomerated rounds with excellent batch-to-batch reproducibility, important for state-of-the-art manufacturing.
Alternate methods include flame spheroidization, where irregular silica particles are thawed and reshaped right into balls using high-temperature plasma or fire treatment, and emulsion-based methods that allow encapsulation or core-shell structuring.
For large commercial production, salt silicate-based rainfall courses are likewise used, providing cost-effective scalability while keeping acceptable sphericity and purity.
Surface functionalization throughout or after synthesis– such as implanting with silanes– can present natural groups (e.g., amino, epoxy, or vinyl) to improve compatibility with polymer matrices or allow bioconjugation.

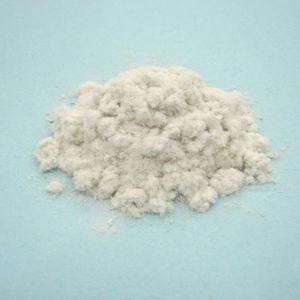

( Spherical Silica)
2. Useful Characteristics and Performance Advantages
2.1 Flowability, Loading Thickness, and Rheological Habits
One of the most significant advantages of spherical silica is its exceptional flowability contrasted to angular counterparts, a property critical in powder processing, shot molding, and additive production.
The lack of sharp sides reduces interparticle friction, permitting dense, homogeneous packing with minimal void room, which boosts the mechanical integrity and thermal conductivity of final composites.
In electronic packaging, high packing density straight converts to lower resin web content in encapsulants, improving thermal security and reducing coefficient of thermal growth (CTE).
In addition, round fragments impart desirable rheological properties to suspensions and pastes, reducing viscosity and stopping shear enlarging, which ensures smooth dispensing and uniform finish in semiconductor fabrication.
This regulated flow behavior is important in applications such as flip-chip underfill, where exact product positioning and void-free dental filling are required.
2.2 Mechanical and Thermal Security
Round silica exhibits exceptional mechanical strength and flexible modulus, contributing to the reinforcement of polymer matrices without causing stress concentration at sharp edges.
When incorporated into epoxy materials or silicones, it enhances solidity, wear resistance, and dimensional security under thermal biking.
Its low thermal expansion coefficient (~ 0.5 × 10 ⁻⁶/ K) carefully matches that of silicon wafers and published motherboard, lessening thermal inequality stresses in microelectronic devices.
In addition, spherical silica maintains architectural integrity at elevated temperature levels (approximately ~ 1000 ° C in inert ambiences), making it suitable for high-reliability applications in aerospace and automotive electronic devices.
The combination of thermal stability and electric insulation even more enhances its energy in power components and LED product packaging.
3. Applications in Electronic Devices and Semiconductor Market
3.1 Function in Electronic Packaging and Encapsulation
Spherical silica is a keystone product in the semiconductor sector, mostly utilized as a filler in epoxy molding substances (EMCs) for chip encapsulation.
Changing typical uneven fillers with round ones has actually changed product packaging modern technology by enabling greater filler loading (> 80 wt%), improved mold circulation, and reduced wire sweep during transfer molding.
This improvement supports the miniaturization of incorporated circuits and the development of innovative packages such as system-in-package (SiP) and fan-out wafer-level product packaging (FOWLP).
The smooth surface area of round fragments additionally reduces abrasion of fine gold or copper bonding wires, improving device dependability and yield.
Moreover, their isotropic nature makes sure consistent stress and anxiety circulation, reducing the risk of delamination and splitting during thermal biking.
3.2 Use in Polishing and Planarization Procedures
In chemical mechanical planarization (CMP), spherical silica nanoparticles function as rough representatives in slurries made to brighten silicon wafers, optical lenses, and magnetic storage media.
Their consistent size and shape ensure regular product removal prices and very little surface area problems such as scratches or pits.
Surface-modified spherical silica can be customized for certain pH environments and sensitivity, improving selectivity between various materials on a wafer surface.
This precision allows the fabrication of multilayered semiconductor structures with nanometer-scale monotony, a prerequisite for advanced lithography and gadget integration.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Uses
Beyond electronics, spherical silica nanoparticles are increasingly employed in biomedicine because of their biocompatibility, simplicity of functionalization, and tunable porosity.
They function as medication distribution service providers, where therapeutic representatives are packed into mesoporous structures and released in feedback to stimuli such as pH or enzymes.
In diagnostics, fluorescently labeled silica balls function as secure, non-toxic probes for imaging and biosensing, outperforming quantum dots in specific organic settings.
Their surface area can be conjugated with antibodies, peptides, or DNA for targeted detection of microorganisms or cancer cells biomarkers.
4.2 Additive Production and Composite Materials
In 3D printing, particularly in binder jetting and stereolithography, spherical silica powders boost powder bed density and layer harmony, resulting in higher resolution and mechanical strength in published ceramics.
As a strengthening stage in steel matrix and polymer matrix composites, it boosts tightness, thermal administration, and put on resistance without endangering processability.
Research is additionally discovering crossbreed bits– core-shell frameworks with silica coverings over magnetic or plasmonic cores– for multifunctional products in sensing and power storage.
To conclude, spherical silica exhibits exactly how morphological control at the mini- and nanoscale can change an usual material right into a high-performance enabler across varied technologies.
From guarding microchips to progressing clinical diagnostics, its unique mix of physical, chemical, and rheological properties continues to drive technology in science and design.
