1. Material Scientific Research and Structural Characteristic
1.1 Crystal Structure and Chemical Security

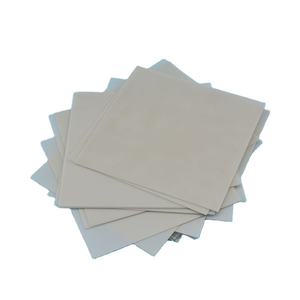

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of light weight aluminum and nitrogen atoms bonded with strong covalent interactions.
This robust atomic plan enhances AlN with extraordinary thermal stability, keeping structural integrity as much as 2200 ° C in inert atmospheres and standing up to disintegration under severe thermal cycling.
Unlike alumina (Al two O SIX), AlN is chemically inert to thaw metals and several reactive gases, making it suitable for severe settings such as semiconductor handling chambers and high-temperature heating systems.
Its high resistance to oxidation– creating only a thin safety Al two O ₃ layer at surface upon exposure to air– makes certain long-lasting dependability without substantial deterioration of bulk residential properties.
Furthermore, AlN shows outstanding electrical insulation with a resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric toughness over 30 kV/mm, essential for high-voltage applications.
1.2 Thermal Conductivity and Digital Characteristics
The most defining function of light weight aluminum nitride is its outstanding thermal conductivity, generally varying from 140 to 180 W/(m · K )for commercial-grade substratums– over five times more than that of alumina (≈ 30 W/(m · K)).
This efficiency comes from the low atomic mass of nitrogen and light weight aluminum, combined with solid bonding and very little factor flaws, which enable efficient phonon transport via the latticework.
Nonetheless, oxygen contaminations are specifically damaging; even trace amounts (over 100 ppm) replacement for nitrogen websites, developing light weight aluminum openings and spreading phonons, thus drastically decreasing thermal conductivity.
High-purity AlN powders manufactured through carbothermal reduction or straight nitridation are essential to accomplish optimal warm dissipation.
In spite of being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it useful in sensing units and acoustic wave tools, while its vast bandgap (~ 6.2 eV) supports operation in high-power and high-frequency electronic systems.
2. Fabrication Procedures and Production Difficulties

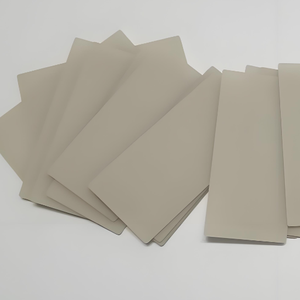

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Strategies
Making high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, typically achieved through responses such as Al ₂ O THREE + 3C + N TWO → 2AlN + 3CO (carbothermal decrease) or straight nitridation of light weight aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder should be very carefully crushed and doped with sintering help like Y TWO O FOUR, CaO, or unusual planet oxides to promote densification at temperatures between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These ingredients form transient fluid phases that boost grain boundary diffusion, allowing full densification (> 99% theoretical thickness) while minimizing oxygen contamination.
Post-sintering annealing in carbon-rich settings can further lower oxygen web content by getting rid of intergranular oxides, thereby recovering peak thermal conductivity.
Attaining uniform microstructure with regulated grain size is important to stabilize mechanical stamina, thermal performance, and manufacturability.
2.2 Substratum Shaping and Metallization
As soon as sintered, AlN porcelains are precision-ground and washed to fulfill tight dimensional resistances required for digital product packaging, typically down to micrometer-level flatness.
Through-hole boring, laser cutting, and surface patterning make it possible for integration into multilayer bundles and crossbreed circuits.
A crucial step in substratum manufacture is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) via processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper foils are bound to AlN surfaces at elevated temperature levels in a regulated environment, creating a solid interface appropriate for high-current applications.
Different strategies like active steel brazing (AMB) utilize titanium-containing solders to enhance adhesion and thermal exhaustion resistance, especially under repeated power cycling.
Appropriate interfacial design guarantees low thermal resistance and high mechanical dependability in operating tools.
3. Performance Advantages in Electronic Systems
3.1 Thermal Management in Power Electronics
AlN substratums excel in taking care of heat generated by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electrical cars, renewable energy inverters, and telecoms infrastructure.
Reliable warm removal protects against local hotspots, lowers thermal stress and anxiety, and expands gadget life time by alleviating electromigration and delamination dangers.
Compared to standard Al ₂ O three substratums, AlN enables smaller bundle sizes and greater power thickness because of its remarkable thermal conductivity, allowing designers to press efficiency boundaries without endangering integrity.
In LED illumination and laser diodes, where joint temperature level directly impacts effectiveness and color stability, AlN substratums dramatically boost luminous outcome and functional lifespan.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical stress and anxiety during thermal biking.
3.2 Electrical and Mechanical Reliability
Beyond thermal performance, AlN uses reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a broad regularity array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids moisture access, getting rid of rust risks in damp environments– a crucial benefit over natural substratums.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and firmness (HV ≈ 1200), ensuring sturdiness throughout handling, assembly, and area operation.
These features collectively add to improved system integrity, reduced failure prices, and reduced complete cost of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Equipments
AlN ceramic substratums are now standard in sophisticated power components for commercial electric motor drives, wind and solar inverters, and onboard chargers in electric and hybrid vehicles.
In aerospace and protection, they sustain radar systems, electronic warfare units, and satellite interactions, where performance under extreme problems is non-negotiable.
Clinical imaging tools, including X-ray generators and MRI systems, also benefit from AlN’s radiation resistance and signal integrity.
As electrification patterns speed up across transportation and power markets, demand for AlN substrates remains to grow, driven by the demand for portable, efficient, and reputable power electronic devices.
4.2 Arising Integration and Sustainable Development
Future developments focus on incorporating AlN into three-dimensional packaging designs, ingrained passive components, and heterogeneous combination platforms integrating Si, SiC, and GaN gadgets.
Research study into nanostructured AlN films and single-crystal substrates intends to additional boost thermal conductivity towards academic limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Efforts to minimize production prices with scalable powder synthesis, additive production of complicated ceramic frameworks, and recycling of scrap AlN are getting energy to boost sustainability.
Furthermore, modeling tools using finite aspect evaluation (FEA) and machine learning are being employed to enhance substrate layout for certain thermal and electric loads.
To conclude, aluminum nitride ceramic substratums stand for a foundation innovation in modern-day electronic devices, distinctively connecting the gap in between electric insulation and remarkable thermal conduction.
Their function in enabling high-efficiency, high-reliability power systems highlights their strategic relevance in the continuous development of electronic and power technologies.
