1. Make-up and Architectural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Security

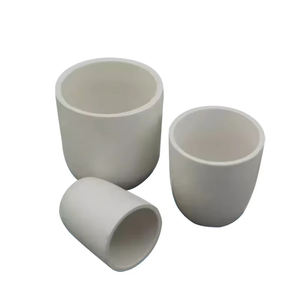

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from fused silica, a synthetic form of silicon dioxide (SiO ₂) stemmed from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys phenomenal thermal shock resistance and dimensional stability under rapid temperature level changes.
This disordered atomic structure prevents cleavage along crystallographic aircrafts, making fused silica much less prone to fracturing during thermal biking compared to polycrystalline ceramics.
The product shows a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), among the lowest amongst design materials, enabling it to hold up against severe thermal gradients without fracturing– a vital home in semiconductor and solar cell production.
Fused silica also keeps excellent chemical inertness against many acids, molten steels, and slags, although it can be gradually etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, relying on pureness and OH material) enables continual procedure at raised temperatures needed for crystal growth and metal refining procedures.
1.2 Purity Grading and Trace Element Control
The performance of quartz crucibles is extremely dependent on chemical pureness, especially the focus of metallic impurities such as iron, sodium, potassium, aluminum, and titanium.
Even trace amounts (parts per million degree) of these pollutants can move into liquified silicon during crystal growth, deteriorating the electrical residential properties of the resulting semiconductor product.
High-purity qualities made use of in electronic devices making usually consist of over 99.95% SiO ₂, with alkali steel oxides limited to much less than 10 ppm and change steels below 1 ppm.
Impurities originate from raw quartz feedstock or handling equipment and are lessened via careful choice of mineral sources and filtration strategies like acid leaching and flotation protection.
In addition, the hydroxyl (OH) material in integrated silica impacts its thermomechanical actions; high-OH types provide better UV transmission however lower thermal stability, while low-OH versions are liked for high-temperature applications because of decreased bubble formation.
( Quartz Crucibles)
2. Production Refine and Microstructural Layout
2.1 Electrofusion and Forming Techniques
Quartz crucibles are mainly produced by means of electrofusion, a procedure in which high-purity quartz powder is fed into a turning graphite mold and mildew within an electrical arc furnace.
An electric arc created between carbon electrodes melts the quartz bits, which solidify layer by layer to create a seamless, thick crucible form.
This approach produces a fine-grained, homogeneous microstructure with minimal bubbles and striae, important for consistent heat circulation and mechanical integrity.
Alternative approaches such as plasma blend and fire fusion are made use of for specialized applications requiring ultra-low contamination or specific wall surface thickness accounts.
After casting, the crucibles go through controlled air conditioning (annealing) to alleviate internal stresses and avoid spontaneous splitting throughout service.
Surface area completing, consisting of grinding and polishing, makes certain dimensional accuracy and decreases nucleation sites for undesirable formation throughout use.
2.2 Crystalline Layer Design and Opacity Control
A defining feature of contemporary quartz crucibles, especially those used in directional solidification of multicrystalline silicon, is the engineered inner layer framework.
During manufacturing, the internal surface area is typically dealt with to promote the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon very first home heating.
This cristobalite layer works as a diffusion barrier, reducing direct communication between molten silicon and the underlying integrated silica, thus minimizing oxygen and metal contamination.
Additionally, the existence of this crystalline phase improves opacity, improving infrared radiation absorption and promoting even more uniform temperature level distribution within the thaw.
Crucible designers carefully stabilize the density and continuity of this layer to avoid spalling or breaking due to quantity modifications throughout stage shifts.
3. Useful Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, functioning as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into liquified silicon held in a quartz crucible and gradually drew up while rotating, allowing single-crystal ingots to develop.
Although the crucible does not straight speak to the expanding crystal, interactions between liquified silicon and SiO ₂ walls result in oxygen dissolution right into the melt, which can affect service provider life time and mechanical stamina in ended up wafers.
In DS processes for photovoltaic-grade silicon, massive quartz crucibles allow the regulated air conditioning of hundreds of kgs of molten silicon into block-shaped ingots.
Below, finishings such as silicon nitride (Si five N ₄) are related to the inner surface area to prevent attachment and facilitate simple release of the solidified silicon block after cooling down.
3.2 Destruction Devices and Life Span Limitations
Regardless of their robustness, quartz crucibles degrade during repeated high-temperature cycles because of a number of interrelated systems.
Viscous circulation or deformation takes place at long term direct exposure over 1400 ° C, causing wall surface thinning and loss of geometric integrity.
Re-crystallization of merged silica into cristobalite produces internal tensions as a result of volume expansion, possibly triggering splits or spallation that infect the melt.
Chemical disintegration arises from reduction responses between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), producing unstable silicon monoxide that runs away and compromises the crucible wall.
Bubble formation, driven by caught gases or OH teams, even more compromises structural toughness and thermal conductivity.
These degradation paths limit the number of reuse cycles and require exact process control to maximize crucible life-span and product yield.
4. Arising Developments and Technical Adaptations
4.1 Coatings and Composite Alterations
To enhance performance and sturdiness, advanced quartz crucibles integrate useful coatings and composite frameworks.
Silicon-based anti-sticking layers and doped silica finishes boost launch attributes and reduce oxygen outgassing during melting.
Some makers incorporate zirconia (ZrO ₂) particles right into the crucible wall surface to raise mechanical toughness and resistance to devitrification.
Study is continuous into completely clear or gradient-structured crucibles designed to maximize convected heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Challenges
With boosting demand from the semiconductor and solar industries, sustainable use quartz crucibles has actually ended up being a concern.
Used crucibles polluted with silicon residue are tough to recycle because of cross-contamination dangers, causing considerable waste generation.
Efforts concentrate on establishing multiple-use crucible linings, boosted cleansing procedures, and closed-loop recycling systems to recoup high-purity silica for second applications.
As gadget efficiencies demand ever-higher material purity, the function of quartz crucibles will certainly continue to progress through development in products science and process engineering.
In summary, quartz crucibles represent an essential interface between raw materials and high-performance electronic items.
Their distinct combination of purity, thermal resilience, and architectural style makes it possible for the fabrication of silicon-based modern technologies that power modern-day computer and renewable resource systems.
