Intro to Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has actually gained prevalent acknowledgment for its remarkable thermal conductivity, electrical insulation, and mechanical stability at raised temperatures. With a hexagonal wurtzite crystal framework, AlN shows a special mix of properties that make it one of the most optimal substrate product for applications in electronic devices, optoelectronics, power components, and high-temperature settings. Its capability to effectively dissipate warm while maintaining exceptional dielectric stamina placements AlN as a remarkable option to standard ceramic substrates such as alumina and beryllium oxide. This post checks out the essential attributes of aluminum nitride porcelains, looks into construction methods, and highlights its vital duties across sophisticated technological domain names.

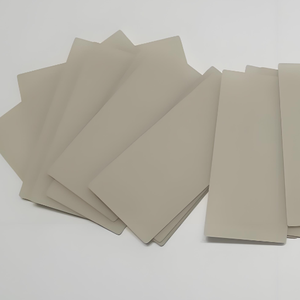

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Quality
The performance of aluminum nitride as a substrate material is mostly determined by its crystalline framework and intrinsic physical residential properties. AlN takes on a wurtzite-type latticework made up of alternating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically going beyond 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This worth dramatically goes beyond those of various other widely used ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN has a wide bandgap of roughly 6.2 eV, resulting in superb electrical insulation residential or commercial properties also at high temperatures. It additionally demonstrates low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor tool product packaging. Furthermore, AlN shows high chemical inertness and resistance to molten steels, boosting its suitability for rough settings. These mixed features establish AlN as a prominent prospect for high-power electronic substrates and thermally handled systems.
Manufacture and Sintering Technologies
Making high-quality light weight aluminum nitride ceramics calls for exact powder synthesis and sintering methods to attain thick microstructures with very little impurities. Because of its covalent bonding nature, AlN does not conveniently densify through standard pressureless sintering. As a result, sintering help such as yttrium oxide (Y TWO O THREE), calcium oxide (CaO), or unusual earth elements are generally added to promote liquid-phase sintering and boost grain limit diffusion.
The construction process usually starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that grated, formed using approaches like tape casting or injection molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Hot pushing or stimulate plasma sintering (SPS) can additionally improve density and thermal conductivity by reducing porosity and advertising grain alignment. Advanced additive manufacturing techniques are likewise being checked out to fabricate complex-shaped AlN parts with customized thermal monitoring abilities.
Application in Digital Packaging and Power Modules
One of one of the most famous uses aluminum nitride porcelains is in electronic packaging, particularly for high-power devices such as insulated gate bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness increase in modern electronic devices, effective warm dissipation becomes crucial to guarantee dependability and long life. AlN substratums give an ideal service by integrating high thermal conductivity with excellent electrical seclusion, avoiding short circuits and thermal runaway problems.
Furthermore, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substratums are increasingly used in power component styles for electric vehicles, renewable energy inverters, and commercial motor drives. Compared to standard alumina or silicon nitride substratums, AlN uses much faster warmth transfer and much better compatibility with silicon chip coefficients of thermal expansion, consequently minimizing mechanical anxiety and enhancing overall system efficiency. Continuous study intends to improve the bonding toughness and metallization strategies on AlN surfaces to further broaden its application scope.
Usage in Optoelectronic and High-Temperature Devices
Beyond digital packaging, aluminum nitride ceramics play a vital function in optoelectronic and high-temperature applications due to their openness to ultraviolet (UV) radiation and thermal security. AlN is commonly used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications calling for sterilization, picking up, and optical communication. Its wide bandgap and low absorption coefficient in the UV array make it a perfect candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
Additionally, AlN’s capability to work accurately at temperature levels surpassing 1000 ° C makes it ideal for use in sensors, thermoelectric generators, and parts exposed to extreme thermal lots. In aerospace and defense sectors, AlN-based sensor packages are utilized in jet engine surveillance systems and high-temperature control units where traditional materials would fall short. Continuous innovations in thin-film deposition and epitaxial development methods are broadening the potential of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Environmental Stability and Long-Term Integrity
An essential factor to consider for any kind of substrate material is its lasting integrity under operational tensions. Light weight aluminum nitride shows premium ecological security compared to numerous various other ceramics. It is very resistant to deterioration from acids, alkalis, and molten steels, making certain toughness in aggressive chemical atmospheres. Nevertheless, AlN is prone to hydrolysis when exposed to dampness at raised temperatures, which can deteriorate its surface area and decrease thermal performance.
To reduce this issue, protective coatings such as silicon nitride (Si three N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are commonly put on enhance moisture resistance. Furthermore, cautious sealing and packaging approaches are implemented throughout device setting up to keep the stability of AlN substrates throughout their service life. As ecological guidelines end up being more rigorous, the non-toxic nature of AlN likewise positions it as a preferred option to beryllium oxide, which poses health threats during processing and disposal.
Final thought
Light weight aluminum nitride ceramics stand for a class of advanced materials uniquely fit to attend to the expanding needs for efficient thermal administration and electric insulation in high-performance electronic and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them the most ideal substratum material for a vast array of applications– from automobile power components to deep UV LEDs and high-temperature sensing units. As fabrication innovations continue to advance and affordable manufacturing methods mature, the fostering of AlN substrates is expected to rise considerably, driving advancement in next-generation digital and photonic devices.
