Explore the comprehensive guide to oil immersed transformers, including oil submersed power transformers and oil submersed circulation transformers. Discover their working principles, kinds, advantages, and progressing role in clever grids and renewable resource.
1. Introduction to Oil Submersed Transformers
In the detailed web of our modern electrical grid, transformers play a crucial role, quietly stepping voltage backwards and forwards to guarantee electricity can be transmitted efficiently over fars away and dispersed securely to our homes and markets. Among the numerous types readily available, the oil immersed transformer stands as a testament to tried and tested reliability and toughness. For decades, these workhorses have developed the foundation of power systems worldwide.
An oil submersed transformer is a type of electric transformer that makes use of a customized shielding oil as both a coolant and an insulating tool. This design is primarily used for tool to high-power applications, making it a foundation of electric infrastructure. This overview dives deep into the globe of oil immersed power transformers and oil immersed distribution transformers, discovering their innovation, applications, and their evolving duty in an era of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer contains a magnetic core and copper or aluminum windings housed inside a secured storage tank full of protecting oil. The key function of the oil is twofold:
1. Insulation: The oil has high dielectric strength, efficiently shielding the high-voltage windings from the transformer’s core and grounded container. This stops brief circuits and electric breakdowns.
2. Cooling: As the transformer operates, the windings generate substantial warm as a result of I ² R losses. The circulating oil absorbs this heat, convects it to the transformer’s storage tank walls, and dissipates it right into the bordering air. Bigger devices typically include radiators or fins to enhance the area for a lot more reliable air conditioning.
This dual-purpose use of oil makes the oil submersed transformer extremely effective and durable, with the ability of handling high tons and holding up against short-term overloads much better than numerous dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil immersed transformers, they serve distinctive functions within the power system network. Comprehending the difference is vital.
An oil immersed power transformer is a heavyweight, usually used in transmission networks at generating stations and significant substations. Their primary duty is to “step-up” the voltage created at the power plant to exceptionally high levels (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for further distribution. They are defined by their very high power scores (commonly exceeding 100 MVA), complicated construction, and on-load tap changers for voltage guideline.
An oil engaged circulation transformer, on the other hand, carries out the last step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the reduced voltages (e.g., 400/230 V) used by commercial and domestic customers. You typically locate them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power scores (generally up to 2,500 kVA), and are created for maximum effectiveness at reduced, extra continuous lots.

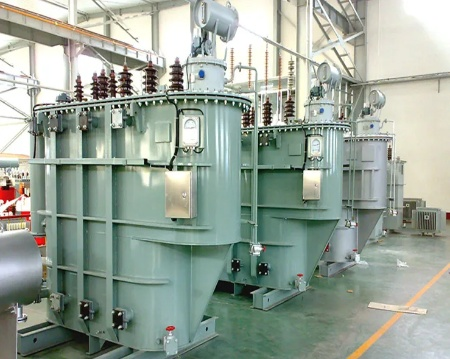

(Oil immersed power transformer)
2. Key Benefits of Oil Immersed Transformers
The enduring appeal of the oil immersed transformer is not unexpected. It supplies a suite of compelling benefits that make it the preferred option for many demanding applications.
2.1 Superior Cooling and Overload Capability
The premium thermal ability of oil compared to air permits an oil immersed power transformer to manage and dissipate warm far more successfully. This converts to a greater overload capability. During periods of top electricity need, an oil immersed transformer can manage short-term overloads without enduring damages, a critical feature for maintaining grid security. The oil’s circulation makes certain also warm distribution, protecting against localized hot spots that can degrade insulation with time.
2.2 Enhanced Insulation and Long Service Life
The mix of high-grade mineral oil and thoroughly fertilized paper insulation creates a dielectric system of exceptional strength. This durable insulation system protects the transformer from voltage surges and transients, adding to an operational life-span that can extend to 30-40 years or even more with correct upkeep. The secured storage tank also safeguards the internal elements from dampness, dirt, and other atmospheric contaminants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is commonly one of the most economical choice. The materials made use of– mineral oil, steel tank, and copper/aluminum windings– provide a beneficial equilibrium of performance and expense. The high performance of these transformers, particularly at their ranked tons, leads to lower energy losses over their lifetime, leading to substantial expense financial savings for energy firms and large industrial customers.
3. Warm Topics and Future Trends
The world of oil immersed transformers is not fixed. It is constantly progressing to satisfy brand-new difficulties and integrate with contemporary technologies.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and safety worries are driving a substantial shift far from conventional mineral oil. The market is quickly embracing oil submersed transformers filled with naturally degradable esters (synthetic or all-natural). These oils offer a greater fire point (making them K-class fireproof), are less toxic, and are conveniently eco-friendly, substantially lowering the environmental impact in situation of a leak. This pattern is making oil submersed circulation transformers more secure for setup in city locations and eco sensitive areas.
3.2 Combination with Smart Grids and IoT
The contemporary oil involved power transformer is ending up being a smart node in the wise grid. Sensors are being incorporated to check key criteria in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Discovering mistake gases produced within the oil to anticipate incipient mistakes.
Temperature Level Monitoring: Tracking top-oil and hotspot temperature levels.
Lots and Power Quality Surveillance.
This data, transferred through IoT (Net of Points) platforms, allows anticipating maintenance, stops unexpected blackouts, and maximizes transformer use and life expectancy.
3.3 Sustaining the Renewable Resource Shift
The worldwide promote renewables is producing brand-new need for oil immersed transformers. Large-scale solar ranches and wind power installments call for durable oil submersed power transformers to tip up the produced voltage to transmission levels. Furthermore, the intermittent nature of renewables areas higher anxiety on grid parts, and the tested integrity and overload ability of oil submersed transformers make them optimal for this vital role.
4. Choice and Upkeep Best Practices
Choosing the ideal transformer and preserving it properly is key to a trusted power system.
4.1 Just how to Select the Right Oil Immersed Transformer
Choosing between an oil submersed power transformer and an oil submersed circulation transformer relies on the application. Secret considerations consist of:
1. Voltage Level and kVA Rating: Suit the transformer’s specs to your system’s demands.
2. Application: Transmission substation, industrial plant, or industrial circulation.
3. Area: Indoor vs. exterior, environmental conditions, and fire security laws (which may influence the selection of shielding oil).
4. Performance Requirements: Comply with local efficiency criteria like DOE (United States) or EU CoC (Europe).
5. Budget plan: Take into consideration both the first capital cost and the total price of possession, consisting of losses.

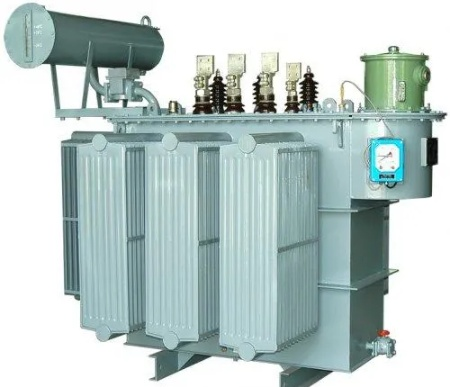

(Oil immersed distribution transformer)
4.2 Important Maintenance for Long Life
Proactive maintenance is important for any oil submersed transformer. A thorough program needs to consist of:
1. Normal Oil Tasting and Screening: Routine DGA and testing of dielectric strength and dampness content are the most reliable means to assess the health of the transformer.
2. Bushing and Insulation Examination: Visual checks for splits, contamination, or leakages.
3. Faucet Changer Upkeep: Normal examination and servicing of on-load or off-load faucet changers.
4. Maintain it Clean and Dry: Ensuring the container outside, radiators, and rests are clean and practical.
The oil submersed transformer, in its duties as both a high-capacity oil submersed power transformer and an ubiquitous oil submersed circulation transformer, continues to be an irreplaceable component of our global energy facilities. Its tested layout, coupled with recurring developments in shielding liquids and electronic monitoring, guarantees it will remain to be a reputable, efficient, and smart remedy for powering our globe for years ahead. As we construct the grids of the future, integrating more renewables and electronic intelligence, the robust and versatile oil immersed transformer will definitely go to the heart of it.
