1. Material Foundations and Collaborating Layout
1.1 Innate Features of Component Phases

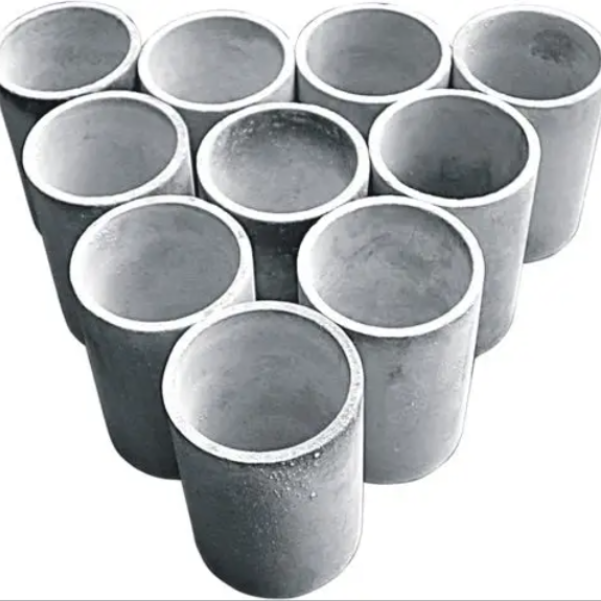

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si three N ₄) and silicon carbide (SiC) are both covalently adhered, non-oxide ceramics renowned for their exceptional performance in high-temperature, destructive, and mechanically demanding settings.
Silicon nitride shows superior fracture strength, thermal shock resistance, and creep stability due to its unique microstructure composed of lengthened β-Si six N ₄ grains that allow fracture deflection and linking devices.
It maintains stamina approximately 1400 ° C and has a relatively reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), reducing thermal stress and anxieties throughout quick temperature modifications.
In contrast, silicon carbide offers premium solidity, thermal conductivity (as much as 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it excellent for rough and radiative warm dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) also confers excellent electric insulation and radiation resistance, valuable in nuclear and semiconductor contexts.
When integrated right into a composite, these products exhibit corresponding actions: Si five N four improves strength and damage tolerance, while SiC boosts thermal administration and use resistance.
The resulting hybrid ceramic accomplishes an equilibrium unattainable by either stage alone, forming a high-performance structural product customized for extreme service conditions.
1.2 Compound Architecture and Microstructural Engineering
The layout of Si five N ₄– SiC composites involves precise control over phase circulation, grain morphology, and interfacial bonding to make best use of synergistic effects.
Usually, SiC is presented as fine particle support (varying from submicron to 1 µm) within a Si two N four matrix, although functionally graded or layered designs are also explored for specialized applications.
During sintering– typically through gas-pressure sintering (GPS) or hot pushing– SiC particles affect the nucleation and development kinetics of β-Si three N four grains, frequently promoting finer and more evenly oriented microstructures.
This refinement improves mechanical homogeneity and reduces imperfection size, adding to better stamina and reliability.
Interfacial compatibility in between the two phases is critical; since both are covalent porcelains with comparable crystallographic balance and thermal expansion actions, they develop coherent or semi-coherent borders that resist debonding under tons.
Additives such as yttria (Y ₂ O TWO) and alumina (Al ₂ O FOUR) are used as sintering help to promote liquid-phase densification of Si two N four without jeopardizing the security of SiC.
Nevertheless, too much second stages can deteriorate high-temperature efficiency, so make-up and handling must be maximized to minimize glassy grain border films.
2. Processing Methods and Densification Difficulties
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Techniques
Top Notch Si Two N ₄– SiC compounds begin with uniform mixing of ultrafine, high-purity powders utilizing wet ball milling, attrition milling, or ultrasonic diffusion in natural or liquid media.
Attaining uniform diffusion is vital to avoid load of SiC, which can serve as stress and anxiety concentrators and lower crack durability.
Binders and dispersants are contributed to stabilize suspensions for forming methods such as slip spreading, tape spreading, or injection molding, relying on the preferred element geometry.
Environment-friendly bodies are then thoroughly dried out and debound to get rid of organics before sintering, a procedure needing controlled heating rates to prevent fracturing or deforming.
For near-net-shape manufacturing, additive techniques like binder jetting or stereolithography are emerging, allowing intricate geometries previously unreachable with typical ceramic processing.
These techniques require customized feedstocks with enhanced rheology and green strength, typically involving polymer-derived porcelains or photosensitive resins filled with composite powders.
2.2 Sintering Devices and Phase Security
Densification of Si Five N ₄– SiC compounds is testing as a result of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at functional temperature levels.
Liquid-phase sintering using rare-earth or alkaline earth oxides (e.g., Y TWO O FOUR, MgO) lowers the eutectic temperature and improves mass transport through a transient silicate melt.
Under gas pressure (normally 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and last densification while reducing decay of Si six N ₄.
The presence of SiC impacts viscosity and wettability of the fluid phase, potentially changing grain development anisotropy and last structure.
Post-sintering warmth treatments might be put on take shape residual amorphous phases at grain boundaries, boosting high-temperature mechanical buildings and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely utilized to validate phase pureness, lack of unwanted additional phases (e.g., Si two N TWO O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Lots
3.1 Strength, Durability, and Exhaustion Resistance
Si Three N ₄– SiC composites show premium mechanical efficiency compared to monolithic ceramics, with flexural staminas going beyond 800 MPa and fracture sturdiness values getting to 7– 9 MPa · m 1ST/ ².
The reinforcing impact of SiC fragments hinders dislocation movement and fracture proliferation, while the elongated Si three N four grains continue to supply strengthening via pull-out and connecting systems.
This dual-toughening method leads to a material very resistant to influence, thermal biking, and mechanical exhaustion– critical for revolving elements and structural components in aerospace and power systems.
Creep resistance continues to be outstanding as much as 1300 ° C, attributed to the stability of the covalent network and lessened grain border sliding when amorphous phases are reduced.
Solidity values commonly vary from 16 to 19 Grade point average, supplying excellent wear and erosion resistance in abrasive settings such as sand-laden flows or moving contacts.
3.2 Thermal Monitoring and Environmental Resilience
The enhancement of SiC significantly boosts the thermal conductivity of the composite, usually increasing that of pure Si three N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC material and microstructure.
This boosted warm transfer capacity enables much more effective thermal management in components exposed to intense localized heating, such as combustion liners or plasma-facing components.
The composite preserves dimensional stability under high thermal gradients, withstanding spallation and fracturing due to matched thermal growth and high thermal shock criterion (R-value).
Oxidation resistance is another vital benefit; SiC develops a safety silica (SiO ₂) layer upon exposure to oxygen at raised temperature levels, which further compresses and seals surface area issues.
This passive layer secures both SiC and Si Six N FOUR (which likewise oxidizes to SiO ₂ and N TWO), ensuring long-term longevity in air, steam, or burning environments.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Solution
Si Two N FOUR– SiC compounds are progressively released in next-generation gas turbines, where they make it possible for higher running temperatures, boosted fuel performance, and reduced air conditioning needs.
Components such as generator blades, combustor liners, and nozzle overview vanes take advantage of the material’s capacity to hold up against thermal biking and mechanical loading without substantial degradation.
In nuclear reactors, specifically high-temperature gas-cooled reactors (HTGRs), these compounds serve as fuel cladding or architectural assistances because of their neutron irradiation resistance and fission item retention capacity.
In commercial setups, they are utilized in molten steel handling, kiln furniture, and wear-resistant nozzles and bearings, where standard metals would certainly fail prematurely.
Their lightweight nature (thickness ~ 3.2 g/cm ³) likewise makes them attractive for aerospace propulsion and hypersonic automobile elements based on aerothermal home heating.
4.2 Advanced Production and Multifunctional Assimilation
Arising research focuses on developing functionally graded Si five N FOUR– SiC frameworks, where structure varies spatially to enhance thermal, mechanical, or electro-magnetic properties across a single element.
Hybrid systems including CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si Four N FOUR) press the boundaries of damage resistance and strain-to-failure.
Additive production of these compounds enables topology-optimized heat exchangers, microreactors, and regenerative air conditioning networks with interior lattice frameworks unreachable via machining.
Additionally, their fundamental dielectric properties and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed platforms.
As needs expand for products that perform reliably under severe thermomechanical lots, Si ₃ N FOUR– SiC composites represent a crucial improvement in ceramic design, merging effectiveness with capability in a solitary, sustainable platform.
Finally, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the toughness of 2 sophisticated porcelains to create a hybrid system capable of flourishing in one of the most serious functional atmospheres.
Their continued advancement will certainly play a central role beforehand tidy power, aerospace, and industrial technologies in the 21st century.
