1. Product Fundamentals and Architectural Characteristic
1.1 Crystal Chemistry and Polymorphism

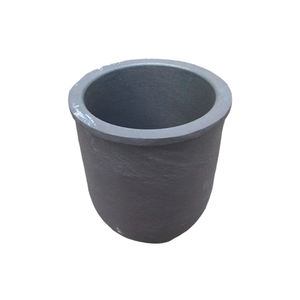

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms organized in a tetrahedral latticework, creating one of one of the most thermally and chemically robust products understood.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond power exceeding 300 kJ/mol, confer outstanding hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is chosen due to its capacity to keep architectural stability under extreme thermal slopes and corrosive liquified environments.
Unlike oxide porcelains, SiC does not undergo disruptive phase shifts as much as its sublimation point (~ 2700 ° C), making it optimal for sustained procedure over 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A defining characteristic of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes consistent heat distribution and minimizes thermal stress during quick heating or cooling.
This property contrasts greatly with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to cracking under thermal shock.
SiC likewise shows exceptional mechanical strength at elevated temperatures, keeping over 80% of its room-temperature flexural stamina (approximately 400 MPa) also at 1400 ° C.
Its low coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further enhances resistance to thermal shock, an essential factor in repeated biking in between ambient and operational temperature levels.
In addition, SiC demonstrates remarkable wear and abrasion resistance, making sure lengthy service life in environments entailing mechanical handling or stormy melt flow.
2. Manufacturing Methods and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Approaches
Business SiC crucibles are largely fabricated via pressureless sintering, response bonding, or warm pressing, each offering distinct benefits in cost, purity, and performance.
Pressureless sintering includes condensing fine SiC powder with sintering help such as boron and carbon, complied with by high-temperature treatment (2000– 2200 ° C )in inert ambience to achieve near-theoretical thickness.
This approach returns high-purity, high-strength crucibles ideal for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is created by penetrating a permeable carbon preform with molten silicon, which reacts to form β-SiC sitting, leading to a composite of SiC and recurring silicon.
While slightly reduced in thermal conductivity due to metal silicon additions, RBSC offers exceptional dimensional stability and reduced manufacturing cost, making it popular for massive commercial usage.
Hot-pressed SiC, though a lot more costly, supplies the highest thickness and purity, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface Top Quality and Geometric Precision
Post-sintering machining, consisting of grinding and splashing, ensures specific dimensional resistances and smooth interior surface areas that reduce nucleation sites and minimize contamination risk.
Surface area roughness is very carefully regulated to avoid thaw adhesion and help with easy release of solidified materials.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is optimized to stabilize thermal mass, architectural strength, and compatibility with heating system heating elements.
Personalized styles accommodate certain melt volumes, heating profiles, and material reactivity, making certain optimum performance across varied industrial procedures.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, confirms microstructural homogeneity and absence of defects like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Environments
SiC crucibles show phenomenal resistance to chemical assault by molten metals, slags, and non-oxidizing salts, outperforming conventional graphite and oxide porcelains.
They are stable touching molten aluminum, copper, silver, and their alloys, standing up to wetting and dissolution due to low interfacial energy and formation of protective surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles stop metal contamination that can break down digital buildings.
Nonetheless, under extremely oxidizing conditions or in the existence of alkaline changes, SiC can oxidize to create silica (SiO TWO), which may respond better to create low-melting-point silicates.
Consequently, SiC is best fit for neutral or minimizing ambiences, where its security is taken full advantage of.
3.2 Limitations and Compatibility Considerations
Regardless of its toughness, SiC is not generally inert; it responds with specific molten materials, particularly iron-group metals (Fe, Ni, Co) at heats via carburization and dissolution procedures.
In liquified steel handling, SiC crucibles weaken swiftly and are for that reason prevented.
Likewise, alkali and alkaline planet steels (e.g., Li, Na, Ca) can minimize SiC, releasing carbon and forming silicides, restricting their usage in battery product synthesis or reactive metal spreading.
For molten glass and porcelains, SiC is normally compatible however might introduce trace silicon right into highly delicate optical or electronic glasses.
Recognizing these material-specific interactions is important for picking the suitable crucible type and ensuring procedure purity and crucible longevity.
4. Industrial Applications and Technological Development
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are vital in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they endure extended direct exposure to molten silicon at ~ 1420 ° C.
Their thermal stability makes certain consistent crystallization and minimizes dislocation thickness, straight influencing photovoltaic or pv performance.
In shops, SiC crucibles are made use of for melting non-ferrous steels such as aluminum and brass, supplying longer service life and lowered dross formation contrasted to clay-graphite choices.
They are also employed in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of advanced ceramics and intermetallic compounds.
4.2 Future Patterns and Advanced Material Assimilation
Arising applications consist of making use of SiC crucibles in next-generation nuclear products screening and molten salt activators, where their resistance to radiation and molten fluorides is being assessed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O THREE) are being put on SiC surfaces to better boost chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.
Additive production of SiC components making use of binder jetting or stereolithography is under advancement, encouraging complicated geometries and quick prototyping for specialized crucible layouts.
As demand grows for energy-efficient, sturdy, and contamination-free high-temperature handling, silicon carbide crucibles will certainly continue to be a keystone innovation in innovative products making.
To conclude, silicon carbide crucibles stand for an essential enabling component in high-temperature commercial and scientific procedures.
Their unmatched mix of thermal stability, mechanical toughness, and chemical resistance makes them the material of choice for applications where performance and integrity are vital.
