1. Material Principles and Crystal Chemistry
1.1 Make-up and Polymorphic Structure

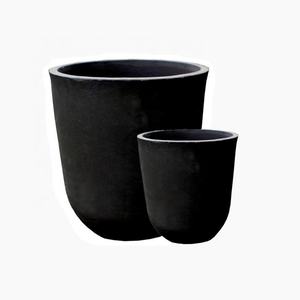

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its extraordinary solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in stacking series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technically appropriate.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) cause a high melting factor (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and excellent resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have a native glassy stage, contributing to its security in oxidizing and corrosive environments as much as 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, depending upon polytype) additionally endows it with semiconductor homes, allowing twin usage in structural and electronic applications.
1.2 Sintering Challenges and Densification Techniques
Pure SiC is very tough to densify as a result of its covalent bonding and reduced self-diffusion coefficients, demanding the use of sintering help or advanced processing methods.
Reaction-bonded SiC (RB-SiC) is produced by penetrating permeable carbon preforms with liquified silicon, creating SiC in situ; this method returns near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert environment, attaining > 99% theoretical thickness and exceptional mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide additives such as Al ₂ O THREE– Y TWO O FOUR, forming a short-term liquid that improves diffusion however might minimize high-temperature stamina as a result of grain-boundary phases.
Warm pushing and trigger plasma sintering (SPS) supply quick, pressure-assisted densification with fine microstructures, suitable for high-performance parts calling for minimal grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Stamina, Hardness, and Wear Resistance
Silicon carbide porcelains display Vickers hardness values of 25– 30 GPa, second only to ruby and cubic boron nitride amongst design products.
Their flexural stamina generally varies from 300 to 600 MPa, with crack durability (K_IC) of 3– 5 MPa · m 1ST/ ²– moderate for porcelains however enhanced via microstructural engineering such as hair or fiber reinforcement.
The mix of high solidity and elastic modulus (~ 410 Grade point average) makes SiC incredibly resistant to abrasive and abrasive wear, outshining tungsten carbide and set steel in slurry and particle-laden environments.

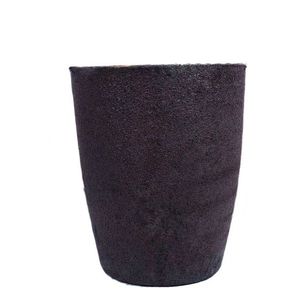

( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components show life span numerous times much longer than traditional choices.
Its reduced density (~ 3.1 g/cm SIX) more adds to use resistance by decreasing inertial forces in high-speed turning parts.
2.2 Thermal Conductivity and Security
One of SiC’s most distinct attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and up to 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels except copper and light weight aluminum.
This residential or commercial property enables effective warmth dissipation in high-power digital substrates, brake discs, and warm exchanger components.
Combined with reduced thermal development, SiC exhibits impressive thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high values indicate resilience to rapid temperature changes.
For instance, SiC crucibles can be heated up from room temperature level to 1400 ° C in minutes without breaking, a task unattainable for alumina or zirconia in similar conditions.
In addition, SiC maintains toughness approximately 1400 ° C in inert environments, making it optimal for heater components, kiln furniture, and aerospace parts exposed to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Actions in Oxidizing and Decreasing Atmospheres
At temperature levels listed below 800 ° C, SiC is extremely stable in both oxidizing and reducing settings.
Over 800 ° C in air, a safety silica (SiO TWO) layer forms on the surface using oxidation (SiC + 3/2 O ₂ → SiO ₂ + CARBON MONOXIDE), which passivates the material and slows down more destruction.
However, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, leading to accelerated economic crisis– a critical factor to consider in generator and burning applications.
In lowering atmospheres or inert gases, SiC continues to be stable up to its decay temperature level (~ 2700 ° C), without phase modifications or toughness loss.
This stability makes it suitable for molten metal handling, such as aluminum or zinc crucibles, where it stands up to wetting and chemical attack far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid mixtures (e.g., HF– HNO SIX).
It reveals exceptional resistance to alkalis up to 800 ° C, though long term exposure to molten NaOH or KOH can create surface etching by means of formation of soluble silicates.
In liquified salt atmospheres– such as those in focused solar energy (CSP) or nuclear reactors– SiC shows exceptional corrosion resistance compared to nickel-based superalloys.
This chemical toughness underpins its usage in chemical process tools, consisting of shutoffs, liners, and warmth exchanger tubes dealing with hostile media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Makes Use Of in Power, Defense, and Manufacturing
Silicon carbide porcelains are integral to countless high-value industrial systems.
In the energy sector, they serve as wear-resistant linings in coal gasifiers, components in nuclear fuel cladding (SiC/SiC composites), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications consist of ballistic shield plates, where SiC’s high hardness-to-density proportion gives remarkable protection against high-velocity projectiles compared to alumina or boron carbide at reduced price.
In manufacturing, SiC is used for accuracy bearings, semiconductor wafer handling components, and rough blowing up nozzles due to its dimensional stability and pureness.
Its use in electric automobile (EV) inverters as a semiconductor substratum is swiftly growing, driven by performance gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Recurring research study concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which display pseudo-ductile behavior, enhanced toughness, and preserved strength above 1200 ° C– perfect for jet engines and hypersonic car leading sides.
Additive production of SiC through binder jetting or stereolithography is advancing, allowing complicated geometries previously unattainable through traditional developing methods.
From a sustainability viewpoint, SiC’s durability reduces replacement frequency and lifecycle exhausts in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created through thermal and chemical recovery procedures to reclaim high-purity SiC powder.
As markets push toward greater performance, electrification, and extreme-environment procedure, silicon carbide-based porcelains will stay at the leading edge of innovative products engineering, connecting the gap in between structural durability and practical adaptability.
