1. Basic Composition and Architectural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Change

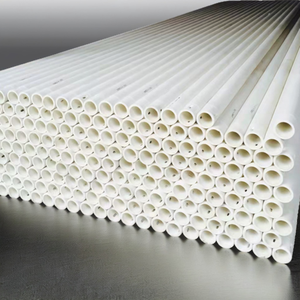

(Quartz Ceramics)
Quartz porcelains, likewise known as integrated silica or merged quartz, are a course of high-performance inorganic materials originated from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) form.
Unlike standard ceramics that rely on polycrystalline frameworks, quartz ceramics are identified by their total absence of grain limits because of their glassy, isotropic network of SiO four tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is accomplished via high-temperature melting of all-natural quartz crystals or synthetic silica precursors, complied with by quick cooling to prevent crystallization.
The resulting product includes generally over 99.9% SiO TWO, with trace pollutants such as alkali metals (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million degrees to protect optical quality, electrical resistivity, and thermal efficiency.
The absence of long-range order gets rid of anisotropic behavior, making quartz ceramics dimensionally steady and mechanically uniform in all instructions– a vital advantage in precision applications.
1.2 Thermal Habits and Resistance to Thermal Shock
One of one of the most specifying functions of quartz porcelains is their extremely reduced coefficient of thermal development (CTE), generally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero growth occurs from the versatile Si– O– Si bond angles in the amorphous network, which can change under thermal stress and anxiety without damaging, enabling the product to endure quick temperature modifications that would certainly crack traditional ceramics or steels.
Quartz ceramics can withstand thermal shocks surpassing 1000 ° C, such as direct immersion in water after heating to red-hot temperatures, without splitting or spalling.
This property makes them indispensable in settings involving repeated home heating and cooling cycles, such as semiconductor handling heaters, aerospace parts, and high-intensity lighting systems.
In addition, quartz ceramics maintain structural integrity as much as temperature levels of about 1100 ° C in constant solution, with temporary exposure tolerance approaching 1600 ° C in inert ambiences.
( Quartz Ceramics)
Past thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and outstanding resistance to devitrification– though extended direct exposure over 1200 ° C can start surface condensation into cristobalite, which might jeopardize mechanical toughness due to quantity adjustments throughout phase transitions.
2. Optical, Electrical, and Chemical Qualities of Fused Silica Systems
2.1 Broadband Openness and Photonic Applications
Quartz porcelains are renowned for their extraordinary optical transmission across a large spooky variety, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is made it possible for by the absence of contaminations and the homogeneity of the amorphous network, which decreases light spreading and absorption.
High-purity artificial merged silica, produced via fire hydrolysis of silicon chlorides, attains even greater UV transmission and is made use of in vital applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages threshold– resisting failure under extreme pulsed laser irradiation– makes it excellent for high-energy laser systems made use of in fusion study and commercial machining.
Moreover, its low autofluorescence and radiation resistance make certain reliability in scientific instrumentation, including spectrometers, UV treating systems, and nuclear tracking devices.
2.2 Dielectric Efficiency and Chemical Inertness
From an electrical viewpoint, quartz ceramics are impressive insulators with quantity resistivity going beyond 10 ¹⁸ Ω · cm at room temperature level and a dielectric constant of around 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) guarantees marginal power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and shielding substratums in digital settings up.
These residential properties continue to be stable over a broad temperature range, unlike many polymers or traditional porcelains that weaken electrically under thermal stress and anxiety.
Chemically, quartz porcelains display amazing inertness to many acids, including hydrochloric, nitric, and sulfuric acids, due to the stability of the Si– O bond.
However, they are vulnerable to attack by hydrofluoric acid (HF) and solid antacids such as warm salt hydroxide, which break the Si– O– Si network.
This selective sensitivity is exploited in microfabrication processes where controlled etching of fused silica is called for.
In hostile commercial settings– such as chemical handling, semiconductor wet benches, and high-purity fluid handling– quartz ceramics serve as linings, sight glasses, and activator elements where contamination need to be reduced.
3. Manufacturing Processes and Geometric Engineering of Quartz Ceramic Components
3.1 Melting and Creating Techniques
The manufacturing of quartz ceramics involves numerous specialized melting techniques, each customized to particular purity and application needs.
Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum or inert gas, creating big boules or tubes with excellent thermal and mechanical buildings.
Flame blend, or burning synthesis, entails shedding silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, depositing great silica fragments that sinter right into a clear preform– this method produces the greatest optical high quality and is made use of for artificial integrated silica.
Plasma melting supplies an alternate route, offering ultra-high temperatures and contamination-free processing for specific niche aerospace and defense applications.
As soon as thawed, quartz porcelains can be formed through accuracy spreading, centrifugal developing (for tubes), or CNC machining of pre-sintered spaces.
Because of their brittleness, machining needs diamond tools and mindful control to avoid microcracking.
3.2 Precision Fabrication and Surface Finishing
Quartz ceramic parts are often fabricated right into complicated geometries such as crucibles, tubes, poles, windows, and custom-made insulators for semiconductor, solar, and laser sectors.
Dimensional precision is important, particularly in semiconductor production where quartz susceptors and bell jars have to keep specific placement and thermal uniformity.
Surface finishing plays a crucial function in efficiency; refined surfaces decrease light scattering in optical elements and lessen nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF services can produce regulated surface textures or get rid of damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleansed and baked to eliminate surface-adsorbed gases, making certain marginal outgassing and compatibility with sensitive procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Manufacturing
Quartz ceramics are fundamental materials in the fabrication of incorporated circuits and solar cells, where they serve as furnace tubes, wafer boats (susceptors), and diffusion chambers.
Their capacity to stand up to high temperatures in oxidizing, lowering, or inert atmospheres– incorporated with reduced metallic contamination– guarantees process purity and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz components maintain dimensional security and resist bending, preventing wafer breakage and imbalance.
In photovoltaic production, quartz crucibles are made use of to expand monocrystalline silicon ingots by means of the Czochralski procedure, where their pureness straight influences the electric top quality of the final solar cells.
4.2 Use in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes have plasma arcs at temperatures going beyond 1000 ° C while transmitting UV and noticeable light effectively.
Their thermal shock resistance protects against failing throughout fast light ignition and shutdown cycles.
In aerospace, quartz porcelains are used in radar windows, sensing unit real estates, and thermal defense systems because of their reduced dielectric continuous, high strength-to-density ratio, and security under aerothermal loading.
In logical chemistry and life sciences, merged silica blood vessels are necessary in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness avoids sample adsorption and ensures exact separation.
Additionally, quartz crystal microbalances (QCMs), which rely upon the piezoelectric buildings of crystalline quartz (unique from fused silica), make use of quartz porcelains as safety real estates and insulating assistances in real-time mass picking up applications.
Finally, quartz porcelains stand for an unique crossway of extreme thermal resilience, optical transparency, and chemical purity.
Their amorphous structure and high SiO two content make it possible for performance in atmospheres where traditional materials stop working, from the heart of semiconductor fabs to the edge of room.
As modern technology advancements toward greater temperature levels, higher accuracy, and cleaner processes, quartz porcelains will continue to serve as an important enabler of development throughout science and sector.
