1. Chemical and Structural Principles of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

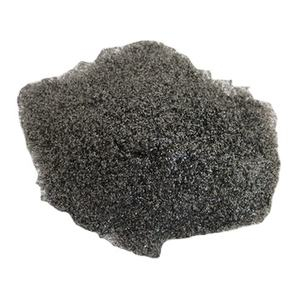

(Boron Carbide Podwer)
Boron carbide (B ₄ C) is a non-metallic ceramic substance renowned for its exceptional solidity, thermal stability, and neutron absorption capability, placing it amongst the hardest known products– gone beyond only by cubic boron nitride and diamond.
Its crystal structure is based on a rhombohedral lattice made up of 12-atom icosahedra (primarily B ₁₂ or B ₁₁ C) interconnected by direct C-B-C or C-B-B chains, forming a three-dimensional covalent network that imparts remarkable mechanical stamina.
Unlike numerous porcelains with taken care of stoichiometry, boron carbide displays a variety of compositional versatility, generally ranging from B FOUR C to B ₁₀. ₃ C, because of the replacement of carbon atoms within the icosahedra and structural chains.
This irregularity influences essential buildings such as hardness, electric conductivity, and thermal neutron capture cross-section, permitting home adjusting based on synthesis problems and intended application.
The existence of inherent flaws and disorder in the atomic plan also adds to its one-of-a-kind mechanical habits, consisting of a sensation known as “amorphization under anxiety” at high pressures, which can limit performance in severe impact circumstances.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is primarily produced through high-temperature carbothermal decrease of boron oxide (B TWO O ₃) with carbon sources such as petroleum coke or graphite in electric arc heaters at temperature levels between 1800 ° C and 2300 ° C.
The response continues as: B TWO O TWO + 7C → 2B FOUR C + 6CO, yielding crude crystalline powder that needs succeeding milling and filtration to achieve fine, submicron or nanoscale particles ideal for sophisticated applications.
Alternative techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis deal courses to greater pureness and controlled fragment size distribution, though they are frequently limited by scalability and expense.
Powder characteristics– consisting of fragment dimension, form, cluster state, and surface area chemistry– are vital parameters that influence sinterability, packaging thickness, and final part efficiency.
For example, nanoscale boron carbide powders exhibit improved sintering kinetics because of high surface area power, allowing densification at lower temperatures, but are susceptible to oxidation and require safety atmospheres during handling and handling.
Surface area functionalization and coating with carbon or silicon-based layers are significantly used to enhance dispersibility and prevent grain growth during combination.

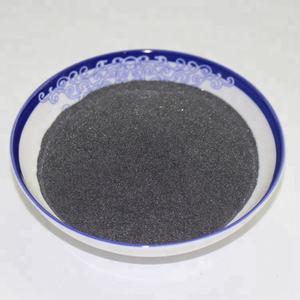

( Boron Carbide Podwer)
2. Mechanical Characteristics and Ballistic Efficiency Mechanisms
2.1 Firmness, Crack Sturdiness, and Wear Resistance
Boron carbide powder is the forerunner to one of the most reliable lightweight shield products available, owing to its Vickers hardness of roughly 30– 35 Grade point average, which allows it to wear down and blunt incoming projectiles such as bullets and shrapnel.
When sintered into dense ceramic tiles or integrated into composite armor systems, boron carbide outmatches steel and alumina on a weight-for-weight basis, making it optimal for personnel security, vehicle shield, and aerospace securing.
Nevertheless, in spite of its high hardness, boron carbide has fairly low fracture strength (2.5– 3.5 MPa · m ONE / TWO), making it vulnerable to fracturing under localized impact or duplicated loading.
This brittleness is aggravated at high strain prices, where dynamic failing devices such as shear banding and stress-induced amorphization can cause catastrophic loss of structural integrity.
Continuous research concentrates on microstructural design– such as introducing additional stages (e.g., silicon carbide or carbon nanotubes), developing functionally graded compounds, or designing ordered architectures– to minimize these limitations.
2.2 Ballistic Energy Dissipation and Multi-Hit Capability
In personal and automobile armor systems, boron carbide floor tiles are generally backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in residual kinetic energy and have fragmentation.
Upon influence, the ceramic layer cracks in a regulated manner, dissipating energy through devices consisting of particle fragmentation, intergranular breaking, and stage makeover.
The fine grain framework originated from high-purity, nanoscale boron carbide powder boosts these power absorption procedures by raising the density of grain limits that hinder fracture propagation.
Current advancements in powder processing have caused the growth of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated structures that enhance multi-hit resistance– an essential demand for armed forces and police applications.
These engineered materials maintain safety efficiency even after first influence, dealing with a key limitation of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Engineering Applications
3.1 Communication with Thermal and Rapid Neutrons
Beyond mechanical applications, boron carbide powder plays a vital duty in nuclear innovation as a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control rods, securing products, or neutron detectors, boron carbide efficiently manages fission responses by capturing neutrons and undergoing the ¹⁰ B( n, α) seven Li nuclear reaction, generating alpha fragments and lithium ions that are quickly had.
This property makes it vital in pressurized water activators (PWRs), boiling water reactors (BWRs), and research study activators, where accurate neutron flux control is vital for safe operation.
The powder is frequently produced into pellets, finishes, or distributed within metal or ceramic matrices to form composite absorbers with tailored thermal and mechanical residential properties.
3.2 Stability Under Irradiation and Long-Term Efficiency
A vital benefit of boron carbide in nuclear environments is its high thermal security and radiation resistance approximately temperature levels going beyond 1000 ° C.
Nevertheless, long term neutron irradiation can cause helium gas accumulation from the (n, α) response, causing swelling, microcracking, and deterioration of mechanical integrity– a phenomenon called “helium embrittlement.”
To mitigate this, scientists are establishing doped boron carbide formulations (e.g., with silicon or titanium) and composite styles that accommodate gas launch and maintain dimensional security over prolonged service life.
In addition, isotopic enrichment of ¹⁰ B boosts neutron capture efficiency while minimizing the overall material quantity required, enhancing reactor style versatility.
4. Arising and Advanced Technological Integrations
4.1 Additive Production and Functionally Graded Components
Current development in ceramic additive manufacturing has actually enabled the 3D printing of complex boron carbide elements making use of strategies such as binder jetting and stereolithography.
In these processes, fine boron carbide powder is uniquely bound layer by layer, followed by debinding and high-temperature sintering to accomplish near-full density.
This ability enables the fabrication of personalized neutron shielding geometries, impact-resistant latticework frameworks, and multi-material systems where boron carbide is integrated with steels or polymers in functionally graded layouts.
Such designs maximize efficiency by incorporating firmness, toughness, and weight efficiency in a solitary part, opening new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Beyond protection and nuclear industries, boron carbide powder is used in rough waterjet cutting nozzles, sandblasting liners, and wear-resistant finishes due to its extreme hardness and chemical inertness.
It outperforms tungsten carbide and alumina in abrasive atmospheres, especially when revealed to silica sand or various other tough particulates.
In metallurgy, it functions as a wear-resistant liner for receptacles, chutes, and pumps dealing with rough slurries.
Its low density (~ 2.52 g/cm FOUR) further enhances its charm in mobile and weight-sensitive commercial equipment.
As powder top quality boosts and handling modern technologies breakthrough, boron carbide is poised to expand right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation shielding.
Finally, boron carbide powder represents a cornerstone product in extreme-environment engineering, integrating ultra-high solidity, neutron absorption, and thermal durability in a single, functional ceramic system.
Its duty in securing lives, making it possible for atomic energy, and advancing industrial efficiency underscores its critical relevance in modern innovation.
With continued development in powder synthesis, microstructural design, and producing combination, boron carbide will certainly continue to be at the forefront of sophisticated materials development for decades to come.
