1. Material Basics and Structural Qualities of Alumina Ceramics
1.1 Make-up, Crystallography, and Phase Security

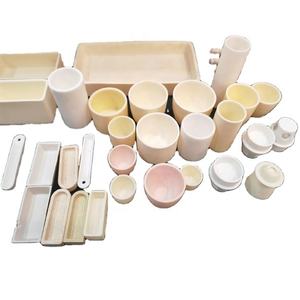

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made mostly from aluminum oxide (Al two O ₃), among the most extensively used innovative ceramics due to its outstanding combination of thermal, mechanical, and chemical security.
The dominant crystalline phase in these crucibles is alpha-alumina (α-Al two O FOUR), which belongs to the corundum framework– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent light weight aluminum ions.
This thick atomic packaging causes solid ionic and covalent bonding, providing high melting factor (2072 ° C), superb solidity (9 on the Mohs range), and resistance to sneak and contortion at elevated temperature levels.
While pure alumina is suitable for a lot of applications, trace dopants such as magnesium oxide (MgO) are usually included throughout sintering to prevent grain development and boost microstructural uniformity, consequently boosting mechanical stamina and thermal shock resistance.
The stage pureness of α-Al ₂ O four is essential; transitional alumina phases (e.g., γ, δ, θ) that form at reduced temperatures are metastable and undertake quantity changes upon conversion to alpha phase, potentially causing breaking or failing under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The performance of an alumina crucible is exceptionally influenced by its microstructure, which is identified during powder handling, creating, and sintering phases.
High-purity alumina powders (typically 99.5% to 99.99% Al Two O ₃) are formed into crucible types making use of techniques such as uniaxial pushing, isostatic pushing, or slip casting, followed by sintering at temperature levels between 1500 ° C and 1700 ° C.
Throughout sintering, diffusion mechanisms drive bit coalescence, minimizing porosity and enhancing density– preferably attaining > 99% academic density to reduce permeability and chemical infiltration.
Fine-grained microstructures boost mechanical stamina and resistance to thermal tension, while controlled porosity (in some customized qualities) can improve thermal shock resistance by dissipating strain energy.
Surface area coating is also crucial: a smooth interior surface area decreases nucleation websites for unwanted responses and promotes simple removal of solidified materials after handling.
Crucible geometry– consisting of wall surface density, curvature, and base style– is maximized to stabilize warmth transfer effectiveness, architectural honesty, and resistance to thermal slopes during quick heating or air conditioning.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Habits
Alumina crucibles are routinely used in atmospheres going beyond 1600 ° C, making them crucial in high-temperature products research study, steel refining, and crystal development procedures.
They display reduced thermal conductivity (~ 30 W/m · K), which, while limiting warm transfer prices, additionally offers a degree of thermal insulation and helps preserve temperature slopes needed for directional solidification or zone melting.
A vital obstacle is thermal shock resistance– the capacity to endure unexpected temperature level modifications without cracking.
Although alumina has a fairly reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K), its high rigidity and brittleness make it vulnerable to fracture when based on steep thermal slopes, specifically during fast home heating or quenching.
To minimize this, individuals are recommended to comply with regulated ramping protocols, preheat crucibles gradually, and avoid direct exposure to open up fires or cool surfaces.
Advanced qualities include zirconia (ZrO ₂) strengthening or rated structures to enhance crack resistance through mechanisms such as stage transformation strengthening or recurring compressive stress and anxiety generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
Among the specifying benefits of alumina crucibles is their chemical inertness toward a variety of liquified steels, oxides, and salts.
They are very immune to fundamental slags, molten glasses, and numerous metal alloys, including iron, nickel, cobalt, and their oxides, which makes them suitable for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
However, they are not globally inert: alumina responds with strongly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be corroded by molten antacid like sodium hydroxide or potassium carbonate.
Particularly critical is their communication with light weight aluminum steel and aluminum-rich alloys, which can lower Al ₂ O ₃ by means of the response: 2Al + Al ₂ O THREE → 3Al two O (suboxide), causing matching and eventual failure.
Similarly, titanium, zirconium, and rare-earth steels display high sensitivity with alumina, forming aluminides or intricate oxides that endanger crucible stability and pollute the thaw.
For such applications, different crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are favored.
3. Applications in Scientific Research and Industrial Handling
3.1 Function in Products Synthesis and Crystal Growth
Alumina crucibles are main to various high-temperature synthesis courses, including solid-state reactions, flux development, and thaw processing of functional ceramics and intermetallics.
In solid-state chemistry, they act as inert containers for calcining powders, manufacturing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal development strategies such as the Czochralski or Bridgman approaches, alumina crucibles are used to include molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness guarantees minimal contamination of the growing crystal, while their dimensional security supports reproducible growth conditions over extended periods.
In flux growth, where single crystals are expanded from a high-temperature solvent, alumina crucibles should stand up to dissolution by the flux tool– typically borates or molybdates– calling for mindful option of crucible quality and handling specifications.
3.2 Use in Analytical Chemistry and Industrial Melting Workflow
In analytical labs, alumina crucibles are basic devices in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where specific mass dimensions are made under controlled ambiences and temperature level ramps.
Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing settings make them suitable for such precision dimensions.
In commercial settings, alumina crucibles are used in induction and resistance heaters for melting precious metals, alloying, and casting procedures, particularly in jewelry, dental, and aerospace component production.
They are likewise made use of in the manufacturing of technical ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to stop contamination and guarantee consistent home heating.
4. Limitations, Taking Care Of Practices, and Future Material Enhancements
4.1 Operational Restrictions and Best Practices for Longevity
In spite of their toughness, alumina crucibles have well-defined functional limitations that should be respected to guarantee security and efficiency.
Thermal shock remains one of the most typical root cause of failing; therefore, steady heating and cooling down cycles are necessary, specifically when transitioning through the 400– 600 ° C range where residual tensions can gather.
Mechanical damages from mishandling, thermal biking, or call with tough products can start microcracks that propagate under anxiety.
Cleaning up should be done meticulously– avoiding thermal quenching or unpleasant methods– and used crucibles ought to be examined for indications of spalling, staining, or contortion before reuse.
Cross-contamination is an additional problem: crucibles made use of for reactive or harmful products should not be repurposed for high-purity synthesis without detailed cleansing or need to be thrown out.
4.2 Arising Fads in Composite and Coated Alumina Systems
To expand the capabilities of typical alumina crucibles, researchers are creating composite and functionally rated materials.
Examples include alumina-zirconia (Al ₂ O SIX-ZrO ₂) composites that improve strength and thermal shock resistance, or alumina-silicon carbide (Al two O ₃-SiC) versions that enhance thermal conductivity for even more uniform home heating.
Surface coatings with rare-earth oxides (e.g., yttria or scandia) are being explored to produce a diffusion obstacle against responsive metals, therefore broadening the range of compatible melts.
In addition, additive production of alumina components is emerging, making it possible for personalized crucible geometries with inner networks for temperature level monitoring or gas flow, opening up new opportunities in procedure control and activator design.
Finally, alumina crucibles remain a cornerstone of high-temperature technology, valued for their dependability, purity, and convenience throughout clinical and industrial domain names.
Their proceeded advancement via microstructural design and hybrid product layout ensures that they will stay essential devices in the innovation of products science, power technologies, and advanced manufacturing.
