1. Product Characteristics and Architectural Style
1.1 Composition and Crystalline Phases of Alumina

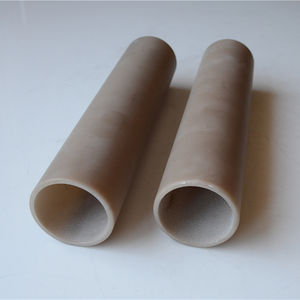

( Alumina Ceramic Tubes)
Alumina (Al ₂ O TWO) ceramic tubes are mainly fabricated from high-purity aluminum oxide, with purity degrees typically ranging from 90% to 99.8%, depending upon the designated application.
The leading crystalline stage in fully dense, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal framework and extraordinary thermodynamic security.
This stage shift from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina takes place above 1100 ° C and causes a dense, interlocking microstructure that offers outstanding mechanical toughness and chemical resistance.
Higher purity grades (≥ 99.5%) make the most of hardness, put on resistance, and dielectric efficiency, while lower-purity formulations might integrate additional phases like mullite or lustrous grain border phases to reduce price or tailor thermal expansion.
The capability to manage grain size, porosity, and phase make-up during handling allows designers to make improvements alumina tubes for details functional requirements throughout varied industrial domain names.
1.2 Mechanical, Thermal, and Electric Feature
Alumina ceramic tubes exhibit a distinct combination of physical homes that make them important sought after design environments.
With a Vickers solidity exceeding 1500 HV, they are very immune to abrasion and erosion, surpassing most steels and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, enabling structural use under high mechanical lots, while flexural stamina normally varies from 300 to 500 MPa, depending upon thickness and surface coating.
Thermally, alumina preserves security up to 1700 ° C in oxidizing environments, with a reduced coefficient of thermal growth (~ 8 ppm/K), adding to excellent thermal shock resistance when properly created.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to steels or aluminum nitride, it is sufficient for many high-temperature applications where electrical insulation and structural honesty are prioritized.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it excellent for electrical feedthroughs, sensor real estates, and high-voltage insulation.

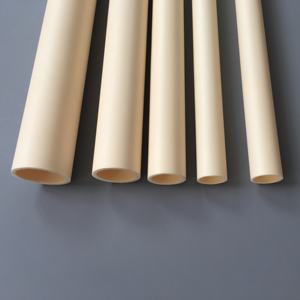

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Forming and Forming Methods
The production of alumina ceramic tubes involves advanced creating techniques tailored to accomplish accurate measurements, wall surface density uniformity, and surface high quality.
Usual methods consist of extrusion, isostatic pushing, and slide spreading, each fit to various dimension varieties and efficiency needs.
Extrusion is commonly utilized for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is forced through a die and cut to length prior to drying out and sintering.
For high-precision or thin-walled tubes, cool isostatic pressing (CIP) applies consistent pressure from all instructions to portable eco-friendly bodies, minimizing distortion and enhancing thickness homogeneity.
Slide casting, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold and mildew, is perfect for complex or large-diameter geometries with variable wall thickness.
After forming, tubes undertake careful drying out to prevent cracking, adhered to by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional stability.
2.2 Completing and Quality Assurance
Post-sintering procedures such as centerless grinding, lapping, and polishing are used to accomplish tight resistances, smooth surface area finishes, and specific internal and external diameters.
Resistances as tight as ± 0.01 mm are attainable for critical applications in semiconductor processing or logical instrumentation.
Surface roughness can be minimized to Ra < 0.1 µm, decreasing fragment capturing and improving compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive screening techniques– including ultrasonic evaluation, X-ray radiography, and color penetrant testing– guarantee structural integrity and absence of cracks or voids.
Dimensional assessment using coordinate determining equipments (CMM) or laser scanning validates conformity with design specifications, specifically for customized or high-volume production runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
Among the most engaging benefits of alumina ceramic tubes is their ability to endure severe thermal and chemical conditions where metals and polymers fall short.
They continue to be dimensionally secure and mechanically robust in continuous service at temperatures over 1500 ° C, making them ideal for heater liners, thermocouple protection sheaths, and glowing heating unit tubes.
Their inertness to molten steels (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (except hydrofluoric and warm phosphoric acid) allows use in metallurgical and chemical processing tools.
In oxidizing and lowering ambiences, alumina does not degrade or catalyze unwanted reactions, maintaining process purity in semiconductor and glass production.
This chemical inertness additionally avoids contamination in high-purity fluid managing systems, consisting of those made use of in pharmaceutical and food processing industries.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma environments, alumina tubes function as insulating obstacles that keep circuit honesty under high voltage and elevated temperature.
They are made use of in high-intensity discharge (HID) lamps, where they consist of ionized gases at temperature levels exceeding 1000 ° C while withstanding electric possibilities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric home windows or gas distribution parts, standing up to ion barrage and thermal biking without cracking or outgassing.
Their reduced dielectric loss and high arc resistance stop electric tracking and malfunction, making certain long life span in switchgear and power transmission components.
These residential properties are vital in keeping process stability and equipment dependability in sophisticated production and energy systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Industrial Processing Equipments
Alumina ceramic tubes are important to a wide range of industrial processes that demand durability under severe conditions.
In thermal processing, they act as protective sheaths for thermocouples and burner in kilns, furnaces, and warm therapy equipment, shielding sensitive parts from destructive atmospheres and mechanical wear.
In fluid handling, they move aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables rapid heating and cooling cycles without failure, a crucial advantage in cyclic commercial procedures.
In glass manufacturing, alumina tubes direct liquified glass circulations and support developing tools, withstanding erosion from viscous, high-temperature melts.
4.2 Advanced Technologies and Future Integration
Past standard commercial usages, alumina tubes are discovering brand-new roles in sophisticated technologies.
In semiconductor construction, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where particle generation and metallic contamination need to be lessened.
In medical gadgets, biocompatible alumina tubes serve as protecting components in surgical devices, oral implants, and analysis sensors.
Research is checking out functionalized alumina tubes with embedded sensors or conductive traces for wise architectural tracking in aerospace and power systems.
Additive manufacturing (3D printing) of alumina is emerging as an approach to create intricate tube geometries with interior networks or graded make-ups, making it possible for next-generation warm exchangers and microreactors.
As markets push towards greater efficiency, cleaner processes, and better dependability, alumina ceramic tubes continue to advance as making it possible for parts in the infrastructure of modern-day innovation.
In recap, alumina ceramic tubes represent a fully grown yet dynamically progressing course of engineered materials, incorporating remarkable thermal, mechanical, and electrical performance in a single not natural channel.
Their adaptability throughout extreme environments ensures their ongoing significance in both established commercial systems and emerging high-tech applications.
