1. Basic Framework and Material Composition
1.1 The Nanoscale Architecture of Aerogels

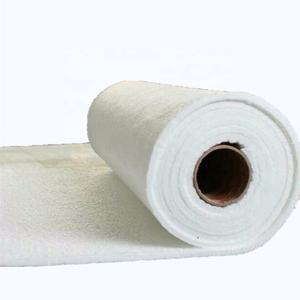

(Aerogel Blanket)
Aerogel blankets are sophisticated thermal insulation materials built on a special nanostructured structure, where a strong silica or polymer network spans an ultra-high porosity volume– generally surpassing 90% air.
This framework originates from the sol-gel procedure, in which a fluid forerunner (frequently tetramethyl orthosilicate or TMOS) goes through hydrolysis and polycondensation to develop a damp gel, complied with by supercritical or ambient pressure drying to eliminate the liquid without collapsing the delicate porous network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) forming pores on the range of 10– 50 nm, tiny sufficient to reduce air particle movement and hence decrease conductive and convective warm transfer.
This phenomenon, called Knudsen diffusion, considerably minimizes the effective thermal conductivity of the product, often to values in between 0.012 and 0.018 W/(m Ā· K) at room temperature– amongst the lowest of any type of strong insulator.
Despite their low thickness (as reduced as 0.003 g/cm FIVE), pure aerogels are inherently weak, requiring reinforcement for practical use in adaptable covering form.
1.2 Support and Compound Design
To overcome frailty, aerogel powders or monoliths are mechanically integrated right into coarse substrates such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that keeps remarkable insulation while obtaining mechanical toughness.
The enhancing matrix provides tensile toughness, flexibility, and managing longevity, enabling the material to be reduced, bent, and installed in intricate geometries without substantial efficiency loss.
Fiber content generally varies from 5% to 20% by weight, thoroughly stabilized to minimize thermal bridging– where fibers conduct heat across the blanket– while making sure architectural stability.
Some advanced designs include hydrophobic surface therapies (e.g., trimethylsilyl groups) to prevent moisture absorption, which can break down insulation performance and advertise microbial development.
These alterations enable aerogel blankets to maintain steady thermal homes also in moist environments, expanding their applicability beyond controlled laboratory conditions.
2. Production Processes and Scalability

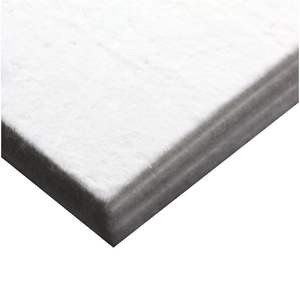

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The production of aerogel coverings begins with the development of a damp gel within a fibrous floor covering, either by impregnating the substrate with a fluid precursor or by co-forming the gel and fiber network at the same time.
After gelation, the solvent have to be removed under conditions that prevent capillary stress from collapsing the nanopores; historically, this needed supercritical CO two drying, a pricey and energy-intensive process.
Recent breakthroughs have allowed ambient stress drying out with surface area adjustment and solvent exchange, dramatically minimizing manufacturing costs and allowing continual roll-to-roll production.
In this scalable procedure, long rolls of fiber floor covering are continuously coated with forerunner remedy, gelled, dried, and surface-treated, enabling high-volume result suitable for industrial applications.
This shift has been critical in transitioning aerogel coverings from niche lab products to commercially feasible products made use of in building, power, and transport industries.
2.2 Quality Control and Efficiency Consistency
Making certain consistent pore framework, constant density, and reputable thermal efficiency throughout big production batches is critical for real-world release.
Makers utilize rigorous quality assurance procedures, consisting of laser scanning for thickness variation, infrared thermography for thermal mapping, and gravimetric evaluation for wetness resistance.
Batch-to-batch reproducibility is necessary, specifically in aerospace and oil & gas markets, where failure due to insulation malfunction can have extreme repercussions.
Additionally, standard testing according to ASTM C177 (warm circulation meter) or ISO 9288 makes certain accurate coverage of thermal conductivity and enables fair comparison with standard insulators like mineral wool or foam.
3. Thermal and Multifunctional Feature
3.1 Superior Insulation Throughout Temperature Varies
Aerogel blankets show outstanding thermal performance not only at ambient temperature levels however additionally across severe arrays– from cryogenic conditions below -100 Ā° C to heats exceeding 600 Ā° C, depending on the base product and fiber kind.
At cryogenic temperatures, standard foams might crack or lose efficiency, whereas aerogel blankets remain versatile and preserve reduced thermal conductivity, making them ideal for LNG pipelines and tank.
In high-temperature applications, such as commercial furnaces or exhaust systems, they provide reliable insulation with reduced density contrasted to bulkier alternatives, conserving area and weight.
Their low emissivity and capacity to mirror radiant heat even more boost efficiency in glowing obstacle arrangements.
This large operational envelope makes aerogel blankets distinctly versatile amongst thermal administration options.
3.2 Acoustic and Fireproof Qualities
Beyond thermal insulation, aerogel blankets show notable sound-dampening buildings because of their open, tortuous pore structure that dissipates acoustic power via viscous losses.
They are progressively utilized in vehicle and aerospace cabins to minimize sound pollution without including considerable mass.
Furthermore, most silica-based aerogel coverings are non-combustible, achieving Course A fire scores, and do not release poisonous fumes when subjected to flame– vital for building safety and security and public infrastructure.
Their smoke density is exceptionally reduced, enhancing presence throughout emergency evacuations.
4. Applications in Market and Arising Technologies
4.1 Energy Effectiveness in Building and Industrial Equipment
Aerogel coverings are changing power performance in style and industrial design by allowing thinner, higher-performance insulation layers.
In buildings, they are used in retrofitting historic structures where wall thickness can not be enhanced, or in high-performance faƧades and home windows to minimize thermal bridging.
In oil and gas, they shield pipelines bring warm fluids or cryogenic LNG, reducing power loss and preventing condensation or ice formation.
Their light-weight nature likewise reduces architectural lots, specifically valuable in overseas platforms and mobile systems.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel coverings protect spacecraft from severe temperature changes throughout re-entry and guard sensitive tools from thermal cycling precede.
NASA has utilized them in Mars vagabonds and astronaut matches for easy thermal guideline.
Automotive producers integrate aerogel insulation right into electrical car battery packs to stop thermal runaway and boost safety and security and performance.
Consumer products, including outside clothing, footwear, and camping gear, now include aerogel cellular linings for superior warmth without mass.
As manufacturing prices decline and sustainability improves, aerogel blankets are positioned to end up being conventional services in international initiatives to minimize energy consumption and carbon emissions.
To conclude, aerogel blankets stand for a merging of nanotechnology and useful engineering, delivering unrivaled thermal performance in a flexible, long lasting style.
Their ability to conserve power, space, and weight while preserving safety and security and environmental compatibility placements them as key enablers of sustainable innovation across varied markets.
