Every part in a railway system must function well. This maintains the system risk-free and reliable. Railway spreading components are extremely crucial. They supply support, connect points, and conduct signals. Their quality impacts how secure the railway network is. When you get these components for South Africa, South America, or Russia, you should locate great manufacturers. To be successful, you need to know the neighborhood technical regulations. Here are 5 essential quality criteria you have to always comply with.
1. Product Structure & Mechanical Residences: The Foundation of Top quality
The efficiency of cast iron depends on its particular chemical structure and casting process, and need to satisfy the international or regional requirements of the target audience. A trusted railway casting parts supplier will supply full material traceability.
1.1 Composition Specifications: Should abide by standards such as International Criteria (ISO), European Standards (EN), Russian GOST criteria, or those commonly made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of damaging components like phosphorus and sulfur should be strictly regulated.
1.2 Mechanical Residences: Focus on tensile toughness, return strength, hardness, and prolongation. For pliable iron, refer to standards such as ISO 1083, EN 1563, or GOST 28394. Purchase needs to need providers to provide material certifications and mechanical examination reports that comply with the target market’s requirements.

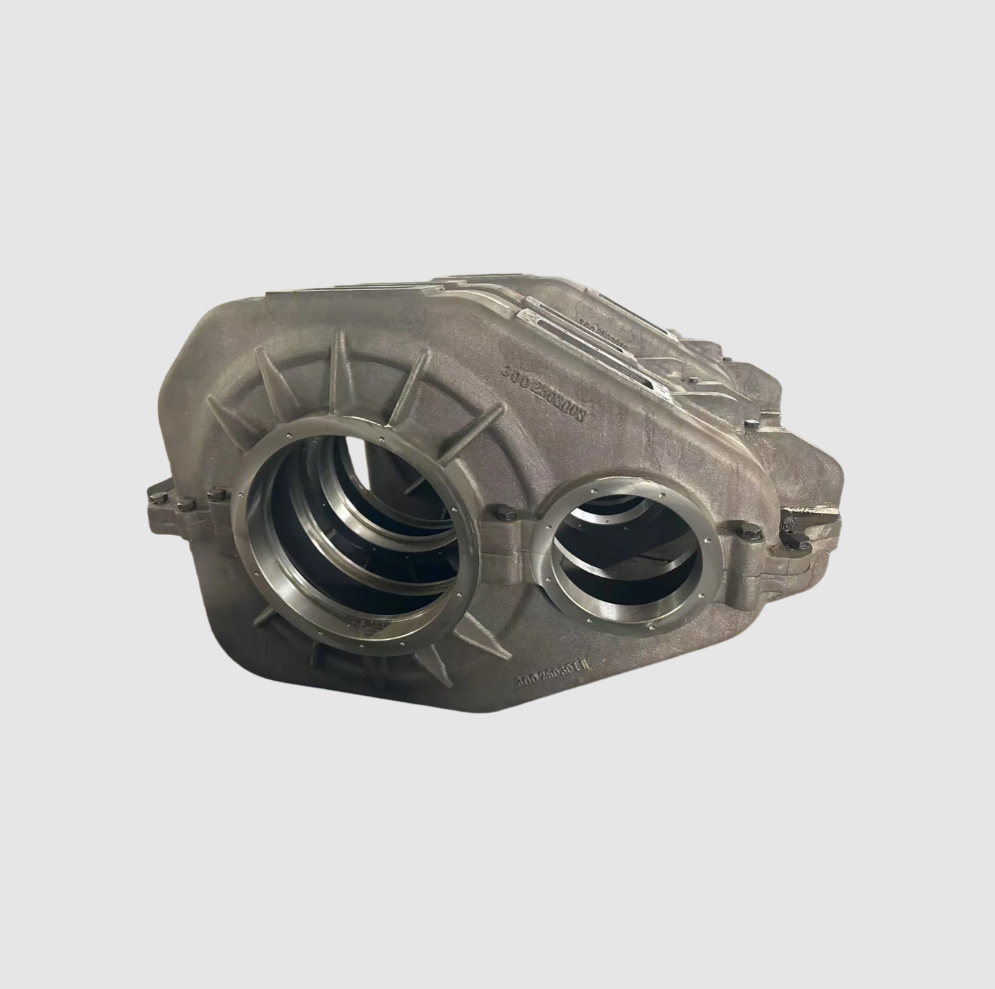

(Railway Cast Iron Gearbox)
2. Dimensional Accuracy & Resistance Control: Guaranteeing a “Perfect Fit”
Railway projects worldwide have rigorous demands for dimensional interchangeability; any discrepancy can affect system integration. Accuracy is a mark of exceptional railway spreading makers.
2.1 Important Dimensions: All user interface measurements and installing hole placements for all train spreading parts have to be 100% evaluated.
2.2 Resistance Requirements: Need to adhere to worldwide identified criteria like ISO 2768, or certain resistance needs clearly agreed upon with the client. For the Russian and CIS markets, unique focus has to be paid to adhering to appropriate resistance specs in GOST 30893.
3. Limitations on Casting Defects: Removing Internal Hidden Dangers
The acceptance requirements for casting flaws should be plainly specified in agreements and based upon internationally or regionally recognized requirements. Leading train spreading parts maker procedures use extensive non-destructive testing.
3.1 Surface area Defects: Requirements like ISO 8062 can be referenced for examining spreading surface area top quality. Cracks, cold shuts, and various other flaws influencing serviceability are not allowed.
3.2 Interior Defects: For essential load-bearing train spreading parts, non-destructive testing (e.g., ultrasonic, radiographic) should be done according to requirements like ISO 4990, EN 12680, or the GOST R 55724 series, with clear acceptance levels for flaws.
4. Metallographic Structure & Internal Quality
The tiny framework of the material is the vital basis for judging whether its interior quality satisfies the requirement. This is an important check for any kind of professional railway casting components supplier.
4.1 Ductile Iron: The assessment of nodularization price must comply with requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical buildings fulfill the demands for usage under complicated working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic inspection report is an important record for verifying the stability of the production process and should adhere to the pertinent worldwide or regional standards.

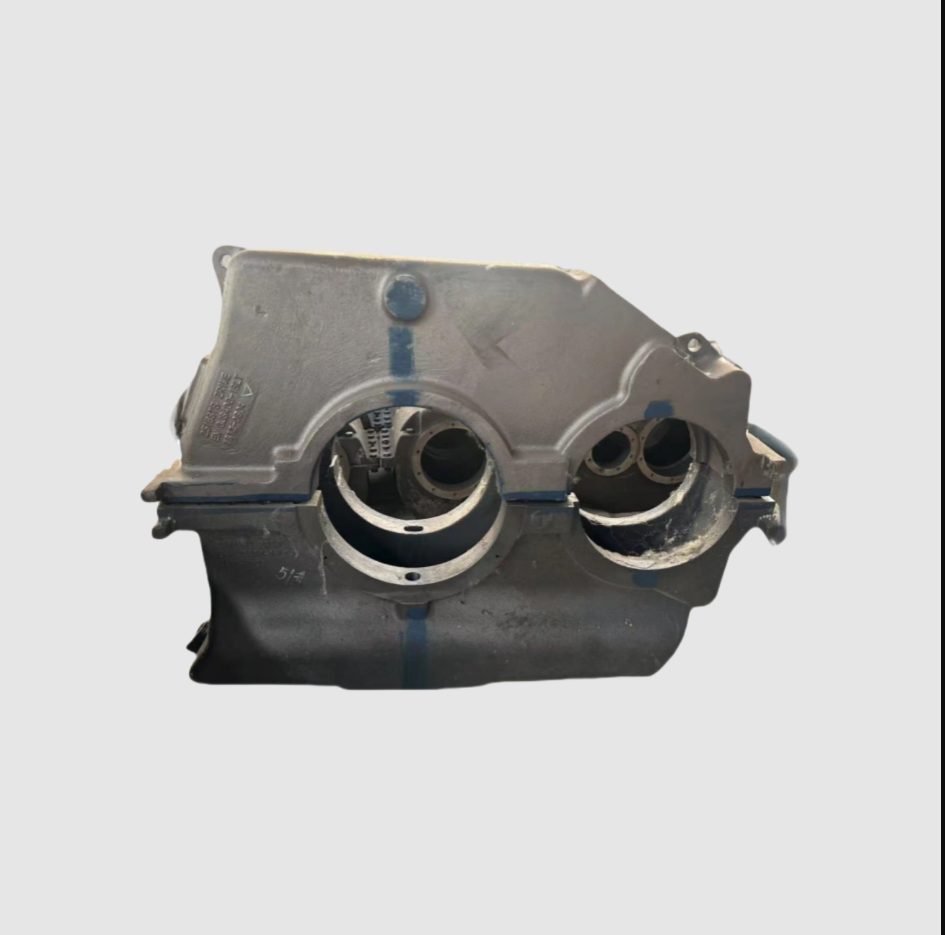

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface Area Quality: Withstanding Harsh Environments
Offered South Africa’s coastal high salinity, South America’s exotic rain forest humidity, and Russia’s severe chilly and de-icing salts, anti-corrosion therapy for railway spreading parts is vital.
5.1 Therapy Procedures: Specify the sort of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy coating, etc, and define crucial indicators like coating thickness, attachment ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Must focus on specific demands of the target market, such as Russia’s GOST 9.307 anti-corrosion system qualification, or South Africa’s SANS (South African National Standard) requirements. A global railway casting suppliers will know with these diverse requirements.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading manufacturer of hefty industrial castings and components, concentrating on supplying top notch steel castings, including carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With a thorough solution model incorporating design, casting, machining, and service, Fonyo makes sure that each item meets rigorous high quality and efficiency criteria to satisfy the requiring needs of numerous heavy sectors.
If you are looking for a trusted supplier of , Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
